Use your home TV & Phone to get into the world of Visual Communication !

TeleScenic is the Easy-to-Use, affordable video phone that conforms to H.324 standard ....

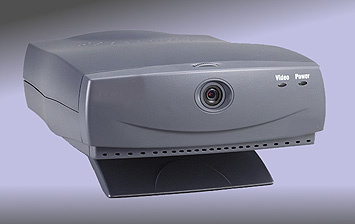

It's all you need to make your phone conversation a live video talk - TeleScenic pots has everything you need to do visual communication. It comes with a built-in high quality digital camera, a high speed modem and a state-of-the-art audio/video hardware codec.

You can now see your families over a long distance call, TeleScenic pots can also be used for other applications such as product demo, medical consulting, patient monitoring, surveillance, remote interview, customer service…etc.

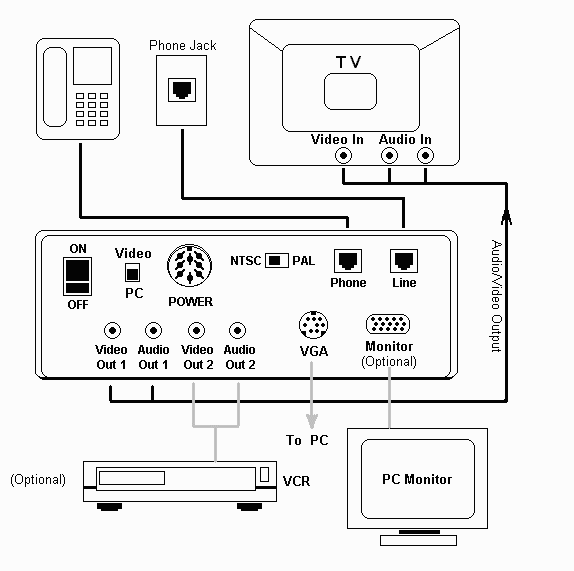

Easy Installation/Operation - When you unpack TeleScenic pots, all you need to do is to plug in the power cord, TV cable, phone line and phone set, then place a regular phone call , you are ready to get connected, visually, to anyone in the world who has an H.324 standard Videophone system.

Advanced Features:

  • AutoAnswering - TeleScenic can pick up the incoming calls after specified number of rings with password protection This allows you to oversee the remote site efficiently.
  • VGA output (optional) - You have the option of doing full-screen video conferencing with your PC monitor in addition to the TV. The PC can be either on or off to do this.







Main Features



Specifications

Fully standards compliant:

System

ITU-T H.324

Signaling

H.245

Channel Multiplexer

H.223

Video

FCIF (352x288 pixels)

QCIF (176x144 pixels)

SQCIF (128x96 pixels)

Frame Rate (SQCIF mode max.): 15 fps

Video source: Built-in digital camera

Video output: Composite (NTSC/PAL)

VGA DB-15 (optional)

Audio

Algorithm: ITU-T G.723

Frequency response: 50 – 3.4 KHz

Automatic gain control

Audio input: telephone handset

Audio output: telephone handset

Network Interface

POTS: RJ-11

Transmission speed (max.): 33.6 Kbps

System Requirements

TV (with A/V input recommended)

Telephone set
