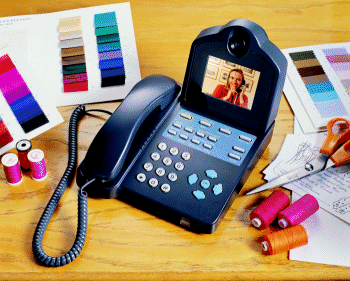

teleScenic-220

Business & Home videophone for ISDN

• Colour display, with superb full colour video
• Two-way speaker-phone with full-duplex echo cancellation, plus a handset for privacy
• Global communication, thanks to the ITU-T international standards
• Easy to use, with familiar telephone keypad and one-touch control of main phone functions
• On-screen text and graphics overlay

• Makes and receives speech-only calls with ordinary telephones
• Optional picture-in-picture self-view
• Camcorder/video recorder connection, for recording calls or playing pre-recorded video clips
• Computer connection via serial interface for collaborative working and data-conferencing using industry standard data-sharing software from desktop and laptop PCs

Specification

Video

• H.261 and H.263:
• CIF resolution (352 x 288 pixels) at up to 15 frames per second
• QCIF resolution (176 x 144 pixels) at up to 30 frames per second
• Picture-in-picture self-view: movable, removable, mirrored
• Composite video input and output (PAL or NTSC)
• Built-in camera:
• Manual focus and tilt (+25° / -2°)
• Colour LCD display
• Adjustable viewing angle

Audio

• G.711 (A-law and U-law), G.722 (3.1 kHz bandwidth) and G.728
• Handset or speaker-phone
• Full duplex echo cancellation for speaker-phone
• DTMF tones
• Line audio input and output

Data

• RS-232 serial connection to computer
• T.120 support

Features

• 10-number Phonebook
• Caller ID
• Call timer
• Last number redial

Network

• ISDN Basic Rate (2B + D), S-interface
• 1B and 2B calls
• Support for ISDN national variants
• Speech calls to any telephone
• Unrestricted (64 kbit/s) and Restricted (56 kbit/s) network support

Standards and Approvals

• ITU-T H.320
• (Europe). For other countries contact your supplier.

Physical

• Dimensions (W x D x H): 21cm x 25cm x 1
• 8cm approx.

Power

• External power supply: 100 - 240V AC; 50 - 60Hz / 0.7A
• Max. consumption 22W
• Low-power stand-by mode

Environment

• Operating temperature: 0 - 40 degrees C ambient
• Non-operating temperature: -10 - 60 degrees C
• Operating humidity: 20% - 90%
• Non-operating humidity: 20% - 90%
