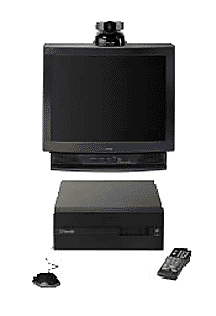

The Venue 2000 Model 30 is a complete, standards-based videoconferencing system that's as easy to afford as it is to upgrade. With the Model 30, companies can afford to deploy group videoconferencing enterprise-wide, linking departments, facilities, and remote sites anywhere around the world.The Model 30 offers greater value than any "basic" videoconferencing system. Unique PictureTel technology makes it possible to offer standards-based video and audio with above-standard quality and performance. Customers can install it in virtually any telecommunications networking environment. Its easy-to-use interface and QuickPad™ remote control make it simple for even novice users to operate. As needs change, users can add options, such as a high resolution graphics monitor, 30 frames-per-second for improved video quality, or the Virtuoso™ audio package for superior audio quality.

• Enables users to start with a complete videoconferencing system that they can customize and upgrade with options and peripherals
• Ensures convenient installation by supporting a variety of high and low speed network connections and remote diagnostics
• Delivers FM-like quality sound using PictureTel’s PT724 Wideband Audio Algorithm
• Uses PictureTel’s 320plus™ technology to deliver high-quality, industry-standard videoconferencing and enables users to upgrade to 30 frames-per-second for more lifelike motion handling
• Provides exceptional ease-of-use with an intuitive, icon-based user interface, QuickPad™ remote control, and context-sensitive online help
• Enables participants to share information using a variety of meeting tools

Software Version: 1.3

VIDEO
ITU-T Standard ..........................................................................….......H.320 (px64)
Video coding ......................................................................…...……....H.261
FCIF...............................................................................……………..352x288 pixels
QCIF ...............................................................................……………176x144 pixels
Channel...........................................................................……………...H.221
Frame rate (max.) ..................................................................................30 fps (opt.)

• Freeze-Frame Graphics
  2xFCIF Annex D.........................................................................704x576
• Video Inputs
  Main camera ................................................................................Y/C or composite
  2 Aux. cameras ............................................................................Y/C or composite
  Document camera ........................................................................Y/C or composite
  1 VCR ...........................................................................Composite, RCA
• Video Outputs
  Main monitor .....................................................................Composite, RCA phono
  VCR Video out ..................................................................Composite, RCA phono
• Video Formats
  Primary monitor ................................................................................PAL or NTSC
  Graphics monitor ...............................................................800x600 pixels (SVGA)
• Power Cam 30
  Type ..................................................................................1/4" Color CCD
  Min. illumination .................................10 Lux @ f 1.6 (50 IRE Video signal level)
  Auto focus .............................................................................6" to infinity
  Resolution ....................................................................................320 lines
  Zoom range ..........................................................................10x
  Max. horiz. field of view ......................................................................61^o
  Pan range ..........................................................................±35^o
  Tilt range .......................................................................+5/-30^o
  Automatic and manual exposure with white balance control

AUDIO

• PictureTel audio enhancements fully compatible with H.320 standards:
  Full Duplex Echo Cancellation ...............................................................IDEC II™
  Auto noise suppression and auto gain control ............................................Optional

*high quality audio and video for PictureTel to PictureTel communications

• Audio Inputs
  Aux. output .........................................................................Line level (RCA phono)
  Microphone .............................................................................120^° optimal pick up
• Audio Output
  Aux. output .........................................................................Line level (RCA phono)
• Audio Privacy Mode (mute)
  Near end mute in Auto Answer mode
• Line Inputs
  Connector ........................................................................RCA phone jack
  Reference level ..............................................................................- 6 dBV
  Clipping level ...............................................................................+ 4 dBV
  Output impedance .......................................................................>100 k unbalanced
• Line and VCR Audio Outputs
  Connector ........................................................................RCA phone jack
  Reference level ..............................................................................- 6 dBV
  Clipping level ...............................................................................+ 4 dBV
  Output impedence ...........................................................................<1 k unbalanced

NETWORK INTERFACE

• Transmission Speeds
  56-128 Kbps ................................................................................Standard
  Up to 1920 Kbps ..........................................................................Optional
• Network Interfaces Supported
  ISDN BRI (S) (2B + D) .............................................................................Standard
  Optional integrated interfaces (may choose one):
  Dual V.35 w/Dual RS-366 for dialing*
  Dual RS-449 w/ Dual RS-366 for dialing*
  (*may also be used for non-dialed connections)
  Dual 4-wire switched 56
  Triple ISDN BRI w/integrated BONDING inverse mulitplexer
  T1-E1 non-dialed interface

FEATURES AND OPTIONS

• Features
  Supports 20-, 27-, 32- and 35-inch displays
  Picture-in-Picture windowing (PIP)
  Far-end camera control
  Near & Far end camera presets
  Freeze frame graphics
  VCR audio
  On-Screen menus and help
  Speed dial directory
  H.320 and H.243 bridge compatible, voice activated
  Manual, auto answer
  Two RS-232C serial ports: 300 bps-19.2 Kbps
  Languages available for menus, keypads and user guides: English, French,
  German, Japanese, Italian, and Spanish
• Options
  Virtuoso (ANS, AGC, PowerMic™)
  Look-At-Me-Button™ .........................................Infrared distributed preset button
  Remote diagnostics over POTS line
  Secondary display (RGB) for graphics
  High data rates software (HDR-2)

ELECTRICAL

• Auto-sensing Power Supply
• Operating Voltage .........................85 to 130 VAC, 200 to 264 VAC, 47-63 Hz
• Power Consumption..............................300 watts typical

• Operating
  Temperature ..............................................................................0^o to 40^oC
  Humidity ................................................................................10% to 80%
• Non-operating
  Temperature ......................................................................- 40^o to + 70^oC
  Humidity ................................................................................10% to 85%
• Ambient Noise ....................................................................... <50 dBA SPL
• Recommended Lighting ................................................................ >300 lux
