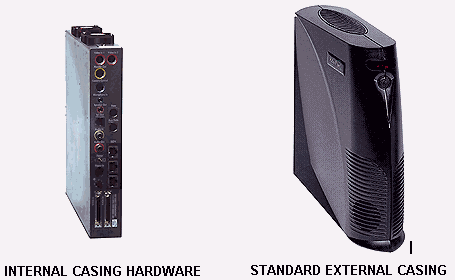

Four engines are currently available:
384Kbps, 128Kbps, V.35 & Rack Mount

Engines are included with the purchase price of each complete system and are also available for individual sale. All engines and complete systems are compatible with every H.320, H.323 standards based video conferencing system in the world. Complete versatility is built into these engines for connection directly to any size t.v., LCD projector, flat screen, P.C., or laptop.

ENGINES INCLUDE:
Model options:
384Kbps-30fps, 128Kbps-15fps,
rack mount-384kbps or 128kbps and V.35
IR remote control
Dynamic 360° microphone
Built-in audio sound system

FEATURES:
100% computer free
Full operation with remote controller
2 High speed serial ports
Built-in U-interface (USA ONLY)
Standards based H.320, H.323 or V.35
Networks: ISDN BRI; ISDN PRI, or T1/E1
Fully portable

Multiple camera inputs
Near & far end remote camera control

PC COLLABORATION
NetMeeting^TM
PowerPoint^TM
file sharing
whiteboarding

Technical Specifications
Unless noted all of the below specifications are standard on 384kbps engine and 128kbps engine.

NETWORK
Algorithms	H.320, H.323 ITU-T
Network capabilities	BRI ISDN X 3 (384 engine) BRI ISDN X 1 (128 engine)
IMUX	Built-in 384 Bonding inverse MUX (Standard on 384 engine) Optional for 128 model
VIDEO	Color
Frame rate	30-fps (384 engine) 15-fps (128 engine) Upgrade available to 30-fps for 128 engine.
Video inputs (2)	Main camera - composite or s-video - NTSC or Pal Camera #2 - composite or s-video - NTSC or Pal Document camera VCR video in Laser disk player CDI DVD Video mixer VGA-TV scan converter Camcorder
Video output	Main monitor - composite or s-video - NTSC or Pal Dual monitor capable LCD projectors VCR output Camcorder output
CAMERA	(Included with purchase of complete system.)
Image sensor	1/3" Hi-res color CCD
Focus length	5.4 to 64.8 mm
Focus	Auto
Zoom ratio	12X
Pan range	100 degrees +/-
Tilt range	25 degrees +/-
Resolution	More than 420 tv lines
CAMERA PRESETS
Local camera	Up to 10 positions
Remote camera	Up to 10 positions
CAMERA CONTROL
Local camera	H.281 (pan/tilt/zoom)
Remote camera	H.281 (pan/tilt/zoom)
MONITOR DISPLAY
Display	Connect directly to any size t.v., LCD projector, VCR, or P.C. or data collaboration
Format	NTSC or Pal
Dual or single monitor	Available for both engines
Picture in Picture	Movable, full screen, and off
AUDIO
Audio coding	G.711 300Hz - 3.4 kHz G.722 300Hz - 7.0 kHz G.728 300Hz - 3.4 khz
Audio features	Full duplex acoustic echo cancellation Automatic noise suppression Automatic gain control
Audio inputs	Internal microphone External 360 degree Electret microphone Auxiliary line level input
Audio outputs	Internal speakers External speakers Auxiliary line level output
DATA
Stills	H.261 - Anex D for sending and receiving Snapshots
Application sharing	T.120 using Microsoft NetMeeting with a PC.
USER INTERFACE
Interface	An easy to use remote control operates the complete system
PHYSICAL
Size of engines	11" tall X 3.5" wide X 12.5" deep
Weight	10 lbs (4.5 kgs)
FEATURES
Three RS-232 data ports Remote diagnostic capability Remote software updates Speed dial directory Audio privacy handset Movable PIP VCR support Voice only calls from analog or ISDN H.320, H.323 and H.243 bridge compatible
